UNDERSTANDING ANTI-FOG AND MIRROR TREATMENTS
Part 2 of our Back to Basics series on lens coatings explains the science, and benefits, behind these treatments
BY JENEAN CARLTON, ABOC, NCLC
Have you ever stepped out of your car and had your lenses become so foggy you couldn’t see where you were walking? Perhaps you’ve entered a store and your lenses fog to the point you had to quickly wipe them off to see clearly.
Fogged lenses are more of a problem than we may realize. Most eyeglass wearers experience this nuisance and potential safety hazard in their daily lives.
Athletes and weekend sports enthusiasts are also routinely faced with the problems of fogged lenses. Can you imagine skiing down a black diamond run in Colorado and your ski goggle suddenly fogs? Or the frustration of being a basketball player and missing a shot because of poor vision caused by fogged protective lenses?
Abrupt temperature changes often result in this for patients Photo courtsey of Essilor
FOG SCENARIOS
Here are a few common scenarios that lead to fogged lenses. Riding a bicycle while wearing closely fitted sunglasses can cause lenses to fog. If the glasses fit too tightly air can’t circulate adequately behind the lenses. Another situation involves leaving eyewear in the car on a cold night then putting the glasses on in the morning for the commute to work. Even cooking can result in fogged lenses. The steam escaping from the pot or oven instantly fogs your lenses, rendering you temporarily impaired and a bit annoyed as you wait for the lenses to normalize to the room temperature and become clear.
Situations like these are no doubt irritating; however there are times when fogged lenses pose a real safety threat.
• Motorcyclists routinely face safety concerns when wearing prescription eyewear behind the face shield on their helmets. The limited airflow beneath the face shield and glasses commonly results in fogged lenses.
• Those working in industrial or construction environments are generally required to wear safety eyewear on the job. The problem with safety eyewear is these frame styles fit very closely to the wearer’s face. While the close fit protects the wearer’s eyes from the potential damage of flying debris, it can also cause a lack of airflow underneath the frames. The limited airflow allows the lenses to fog and sets up a hazardous situation for the wearer as well as coworkers.
• Patients working on projects around the home will need safety eyewear as well. The lenses on some of these frame styles are notorious for fogging, which is troublesome for the wearer. Avoiding wearing safety glasses because of fogging obviously places the wearer at risk.
WATER 101
A phase transition of water is when water changes from one state—a solid, liquid, or gas—to another state without undergoing a change in chemical composition.
• Water vapor changing to water is condensation.
• Ice changing into liquid water is melting.
• Liquid water transforming into water vapor is vaporization and evaporation.
• Water changing to ice is freezing.
• Solid water, like ice or snow, changing into water vapor without first melting into water is termed sublimation.
FOG SCIENCE
Lenses fog when exposed to quick changes in temperature. The moisture in the air and change in temperature causes condensation to form on the lens surfaces. Condensation is the change of water from its gaseous form, water vapor, into liquid water. Condensation results in tiny droplets of water, which appear as fog, to form on the lenses.
Here’s why lenses become foggy when going from the cold outdoors to the warmer indoors: upon entering the store, warm moist air comes into contact with the cold lenses. This quick change in temperature causes condensation to immediately form on the front surface of the lenses because the warmest temperature, and highest humidity level, is the air in the store.
Let’s also consider the scenario of the basketball player. In this case the condensation/fog forms on the inside of his sports goggles. Why did the fog form on the inside of the lenses this time instead of the outside? The air in a gym is likely air-conditioned. As the athlete plays the game he begins to sweat so his body can cool itself from the thermal energy created by his exertion. If his sports goggles fit tightly, and don’t allow enough airflow behind and around the lenses, this creates an air chamber behind his glasses that contains a high level of humidity and high air temperature.
Anti-fog lens treatments, coatings, and products fight fog by creating a hydrophilic lens surface. Hydrophilic treatments and coatings reduce the amount of surface tension on lenses allowing water droplets (condensation) to disperse into a thin sheet of water that is virtually invisible to eyeglass wearers.
Mirror coatings are fun, fashionable, and functional Photo courtesy of iCoat company
In this case the warmer air temperature and higher degree of humidity is behind his glasses. Because of this the fog will form on the back surface of the lenses.
Lens treatments as well as temporary sprays and wipes can keep the fog away Photo courtesy of OptiCote
QUICK FIXES
There are several products available to temporarily keep lenses from fogging. Some of these products are approved for anti-reflective lenses, and some are not. Check labels before recommending.
Some of the popular anti-fog products include: FogBuster from Hilco, available as a spray that comes with a buffing cloth or as a towelette, is good for a few hours or day, depending on application (hilco.com); Clarify Defog It cloths by Nanofilm (nanofilmusa.com); Stormin’ Norman No Fog spray (storminnormans.com); MotoSolutions FogTechDX wipes (motosolutions.com/fogtech.html); and OMS OptoChemicals ZeroFog spray (optochemicals.com).
For a more permanent solution to fogged lenses, several lens treatments have been developed. See sidebar page 92.

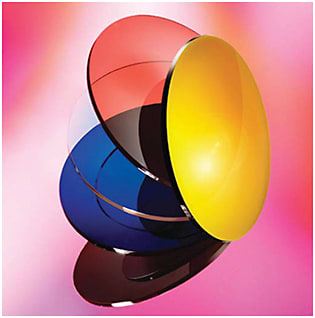

Mirror coatings are available in many colors, and can match or complement a frame’s color Photo courtesy of Shamir Insight
BEHIND THE MIRROR
Mirror treatments on sunwear are hugely popular right now. And for good reason. The variety and colors of today’s mirror treatments are gorgeous. Let’s look at what makes them tick.
At first glance, anti-reflective and mirror treatments seem to be different because one is nearly invisible and the other is highly visible. However, these two treatments are actually closely related.
